The Largest Fire Trucks Manufacturer in China High quality, Best service, Reasonable price.
5 Years
| Ask Lasest Price | |
| Brand Name : | CXFIRE |
| Model Number : | SXF5411JXFJP60 |
| Certification : | CCC, CE, EN, NFPA |
| Price : | USD750,000-USD800,000 |
| Payment Terms : | T/T, L/C, D/A, D/P |
| Supply Ability : | 1000 units per year |
| Delivery Time : | 10-12 months |

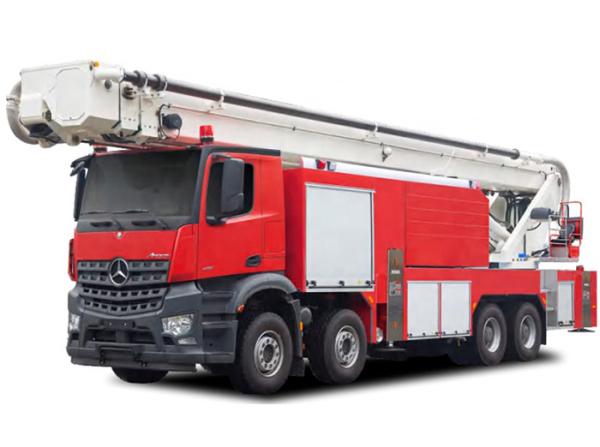

A. Mercedes Benz 60m Water Tower Fire Truck with 8000L Water & Foam
The heavy-duty water tower fire truck model is SXF5411JXFJP60, and is a main fire vehicle used in municipal fire department and industrial areas. The max. working height is 60.5m and the working range is 29 meters. With 6000L water and 2000L foam tank. The water pump flow rate is 170L/s and the boom fire monitor has 70m spray distance.
B. Main Technical Parameters
| No. | Main Items | Technical Parameters |
| 1.1 | Model | SXF5411JXFJP60 |
| 1.2 | Overall Dimensions | 12700mm×2500mm×3950mm |
| 1.3 | Total Weight | 42600Kgs with Full Load |
| 1.4 | Number of the Crew | 1+1 (Including Driver) |
| 1.5 | Max. Speed | 90km/h |
| 1.6 | Capacity | 6000 Liters Water and 2000 Liters Foam |
| 1.7 | Fire Pump Flow Rate | 170L/s @ 10.3bar |
| 1.8 | Fire Monitor on Boom | 80L/s Flow Rate. 70m shoot range |
| 1.9 | Max. Working Height | 60.5 Meters |
C. Superstructure
| No. | Main Items | Technical Parameters |
| 1 | Aluminum Compartment | |
| 1.1 | Material | High-strength aluminum alloy profiles (Never Rust) |
| 1.2 | Structure | Aluminum alloy welded structure. Roof railing with LED light. With aluminum alloy ladder in the rear |
| 2 | Aluminum Roller Shutter Door | |
| 2.1 | Material | Aluminum alloy profiles with anodized surface |
| 2.2 | Structure | With rain-proof groove on the top, lever-type bar, lock handle, pull strap, two-point fixed seat, LED light and sensors. |
| 3 | Foot Pedals | |
| 3.1 | Material | High quality aluminum alloy |
| 3.2 | Structure | 50cm width, bear more than 300kg, anti-slip design, with double lock function. Mounted on the both sides of compartment. |
CXFIRE, founded in the year of 1963, is the biggest fire fighting vehicles manufacturer in China. The annual output is 1000 units fire fighting trucks. The main factory is located in Chengdu of China with an area of 200,000 square meters and 600 employees.
|
|
