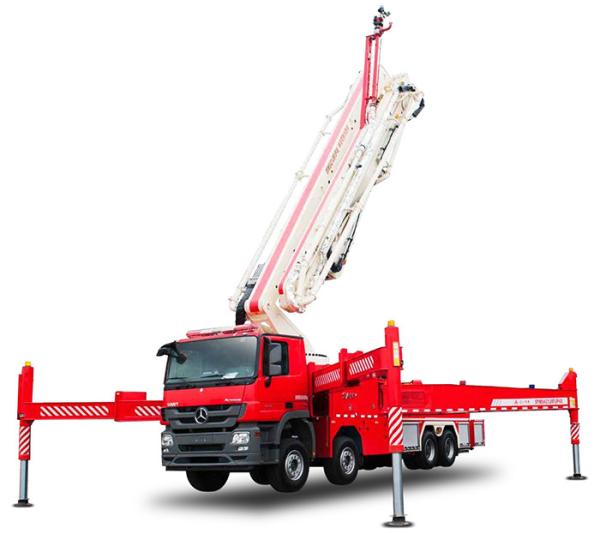

56-62m Large Span All Articulated Water/Foam Tower Fire Fighting Truck

Ask Lasest Price
Brand Name :	CXFIRE
Model Number :	GP56-62
Certification :	CCC, CE, EN, NFPA
Price :	USD550,000-USD650,000
Payment Terms :	T/T, L/C, D/A, D/P
Supply Ability :	1000 units per year
Delivery Time :	12 months

Add to Cart

Product Details
Company Profile

56-62m Large Span All Articulated Water/Foam Tower Fire Fighting Truck

1. Product Introduction

1.1 Big arm span and small support footprint

The maximum working range is 56 meters, which is more than double performance of normal water tower fire truck; the minimum span of the outrigger is only 4 meters, and the corresponding maximum working range can still reach 35 meters, and it has any support function. Very adaptable.

1.2 Strong ability to cross obstacles, precise fire extinguishing

The 6-section fully-foldable boom is like a long-arm manipulator with 6 joints. It has flexible movements and can adjust the attitude of each boom arbitrarily. It can overcome various obstacles to achieve "pointing and hitting", precise spraying, no dead angle fire extinguishing. Improve the efficiency of fire fighting operations.

1.3 Large flow rate and long shoot range

The fire pump has a rated flow of 10000L/min, a maximum effective flow of more than 80L/s, and a water monitor with a shoot range of more than 80m.

1.4 Linkage operation

At the same time as the fire fighting operation of the pump, the boom and water cannon attitude can be adjusted arbitrarily in real time.Water pump flow remains constant.

1.5 Video surveillance

The end of the boom is equipped with a camera device to monitor the fire situation in real time. It is equipped with a 12-inch high-definition display for the car body and a 7-inch remote control display. It also has a 48-hour continuous video storage function.

1.6 Remote control

Equipped with a special remote control, which can operate all the actions of the pump and boom, and one operator can operate all fire fighting actions. 50 meters wired remote control and 150 meters wireless remote control as standard, wired / wireless can be switched arbitrarily.

1.7 Loading rescue

The end of the boom is equipped with a safety hook with a rated load of 180 kg, which can be used to work over obstacles and carry long distance loads.

1.8 High-rise water supply

Equipped with 2.5Mpa high-pressure water supply boom pipeline, the end of which is provided with an external coupling, and the boom can be extended into the high-rise building to quickly establish a water supply line between the outside and the inside of the high-rise building.

2. Detailed Parameters

Whole Vehicle	Size	15600mm×2530mm×4000mm
	Max. Total Weight	50700kg
	Curb Weight	47300kg
Chassis	Model	Optional
	Allowable Max. Load Weight	54000kg
	Engine	Original from Volvo
	Max. Power	397kw@1450-1900rpm
	Emission Standard	Euro 5
Support System	Maximum unfolded span (front width × back width / longitudinal)	9200mm×12750mm/11740mm
	★Minimum spread span	4000mm
	★Arbitrary support	With optional support core technology, when the outriggers are supported at any deployed width, the boom can be deployed for fire extinguishing operations, regardless of site restrictions
	Outrigger full extension and leveling time	40s
Boom System	Max. Working Height	62.5m
	Max. working range	56m
	Max. working range at 4 meters wide span	35m
	★The boom and water pump could be linked	Each boom can move arbitrarily during extinguishing the fire without affecting the jet flow
	★Boom extension time	180s
	Swivel angle	±360°
	★ The end of the boom can be hoisted	180kg(Allows long-distance material transportation)
	★ Working angle range of last boom	-60°～30°(The five-six arms are linear at 0 °), six arms can be inverted, and the action is flexible without dead angles
Fire Fighting System	Water Pump Model	Optional
	Rated Flow Rate	10000LPM@1.03MPa
	Rated Working Pressure	90L/s@1.85MPa
	Water Monitor Model	Optional
	Flow rate of water monitor	5700LPM
	Water monitor shoot range	80m(water)/60m(foam)
	Horizontal rotation angle	-25°～+25°
	Pitch angle	-45°～90°
	Foam System	Automatic B type foam propotioner
	Liquid tank	2000L Water + 1200L Foam
	★Allowable working pressure of pipeline	2.5MPa (the boom pipe can be used as a fire-fighting water supply channel for high-rise buildings above 300 meters)
	External direct supply interface	2pcs DN80 and 2pcs DN125 external interfaces at the bottom, 1pc DN80 outlet at the end of the boom, without passing through the pump
	Self-protection system	5, 6 arms with self-protection spray to protect the end boom and water cannon
Video surveillance system	★End camera	Infrared camera that rotates with water cannon
	★Automatic video storage	Hour continuous memory
	★Vehicle rear video display	12 inch and above HD LCD display
	★Remote control video display	7 inch HD LCD display
Driving parameters	Top speed	≥85km/h
	Minimum turning diameter	27m
	Approach angle	23°
	Departure corner	10°
Others	★ Control method	Proximity control: 50 meters wired remote control (optional): 150 meters wireless remote control
Others	Emergency recovery power	Gasoline engine pump
