The Largest Fire Trucks Manufacturer in China High quality, Best service, Reasonable price.
5 Years
| Ask Lasest Price | |
| Brand Name : | CXFIRE |
| Model Number : | SXF5231GXFPM100 |
| Certification : | CCC, CE, EN, NFPA |
| Price : | USD145,000-USD165,000 |
| Payment Terms : | T/T, L/C, D/A, D/P |
| Supply Ability : | 1000 units per year |
| Delivery Time : | 4-5 months |

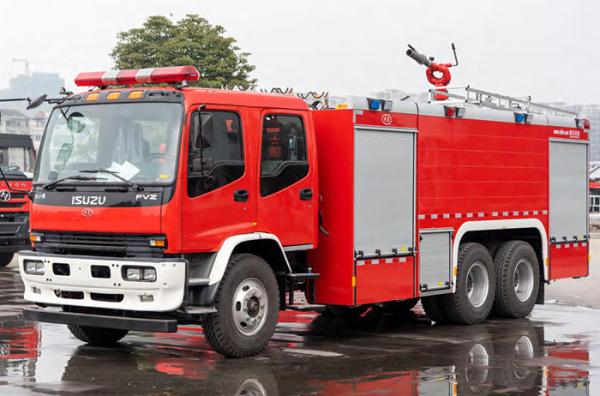

ISUZU 10T Industrial Fire Truck with Double Cabin & Water Pump
1. The Whole Industrial Fire Truck
2. Chassis
| No. | Main Items | Technical Parameters |
| 2.1 | Manufacturer | ISUZU |
| 2.2 | Model | Optional |
| 2.3 | Drive type | 6*4 |
| 2.4 | Wheelbase | 4650mm+1300mm |
| 2.5 | Engine model | Optional |
| 2.6 | Engine type | Inline 6-cylinder, turbocharged, inter-cooled diesel engine |
| 2.7 | Rated power | 221Kw |
| 2.8 | Gearbox form | Manual gearbox, 9 forward gears + 1 reverse gear |
| 2.9 | PTO | Full power sandwich type |
| 2.10 | Fuel tank capacity | 300L fuel tank |
3.1 Cabin
3.1.1 Structure: Double-row seat integrated welding structure with special hydraulic turning mechanism.
3.1.2 Seats: 1+1 in the front row, 4 people in the back row.
3.1.3 Safety: Three-point pre-tightened seat belts are installed.
3.1.4 SCBA Setting: SCBA brackets are installed at the rear seats, and 6.8L-9L air cylinders can be placed.
3.1.5 Interior: PTO switch and alarm lights switches installed in the cab etc.
3.1.6 Lighting: Original lighting of chassis.
3.1.7 Step ladder: High-strength integrated non-slip step ladder.
3.1.8 Storage space: Storage box is arranged under the rear seats.
3.1.9 Air conditioning: fluorine-free environmental protection air conditioning system.
3.1.10 Handrail: Non-slip safety handrail.
3.2 Compartment
3.2.1 Material: All made of high-strength aluminum alloy profiles.
3.2.2 Structure: The frame of the carriage is all-aluminum alloy frame welded structure, and the outer skin is made of bonded aluminum alloy plates.
3.2.3 Roof guard: Made of aluminum alloy as a whole, with strobe warning lights and exterior lights installed outside, and LED roof lights inside.
3.2.4 Ladder frame: A set of multifunctional ladder frame is set on the top.
3.2.5 Rear ladder: An aluminum alloy safety ladder leading to the roof is set on the right side of the rear.
3.3 Electrical System
3.3.1 Warning light warning: Long row warning light are set on the top; The control devices are installed in the cab.
3.3.2 Equipment box lights: There are LED white lighting strips on both sides of the equipment box. The light switch and the rolling door are linked.
3.3.3 Strobe lights: Strobe lights for warning are arranged on the upper part.
3.3.4 Exterior lighting: LED lights for lighting are provided on the upper part of the compartment.
3.3.5 Roof lighting: LED lights are provided inside the top of the carriage.
3.3.6 Side Indicater Light: Built-in yellow indicater lights are installed on pedals.
4. Fire Pump/Fire Monitor/Liquid Tank| 4.1 | Fire Pump | |
| 4.1.1 | Brand | Optional |
| 4.1.2 | Model | Optional |
| 4.1.3 | Rated Flow Rate | 60L/s @ 10bar |
| 4.1.4 | Vacuum Pump | Electric vacuum pump |
| 4.1.5 | Priming Manner | Automatic |
| 4.1.6 | Suction Height | 7m |
| 4.1.7 | Priming Time | ≤60s |
| 4.1.8 | Location | Rear-mounted |
| 4.2 | Fire Monitor | |
| 4.2.1 | Brand | Optional |
| 4.2.2 | Model | Optional |
| 4.2.2 | Flow Rate | 48L/s @ 10bar |
| 4.2.3 | Shoot Range | Water ≥ 60 m, Foam ≥ 55 m |
| 4.2.4 | Location | On the top of the tank |
| 4.2.5 | Control Manner | Manual |
| 4.2.6 | Horizontal Rotation Angle | 0°~360° |
| 4.2.7 | Pitch Rotation Angle | -15°~60° |
| 4.3 | Liquid Tank | |
| 4.3.1 | Capacity | Water 8000L, Foam 2000L |
| 4.3.2 | Material | PP composite material (Never in Rust) |
| 4.3.3 | Structure | Two Tank Manhole; One Overflow Device/Pressure Relief Device; Two Liquid Level Indicators; One Foam tank Drain Outlets with Valves; One Water tank Drain Outlets with Valves. |
| 4.4 | Fire Fighting Control System | |
| 4.4.1 | Structure | Each fire extinguishing system is controlled by PLC, and different standardized control modules can be selected. IP56 protection level |
| 4.4.2 | Location | In the Rear pump room |
|
|
