The Largest Fire Trucks Manufacturer in China High quality, Best service, Reasonable price.
5 Years
| Ask Lasest Price | |
| Brand Name : | CXFIRE |
| Model Number : | SXF5161GXFSG40 |
| Certification : | CCC, CE, EN, NFPA |
| Price : | USD260,000-USD280,000 |
| Payment Terms : | T/T, L/C, D/A, D/P |
| Supply Ability : | 1000 units per year |
| Delivery Time : | 8-10 months |

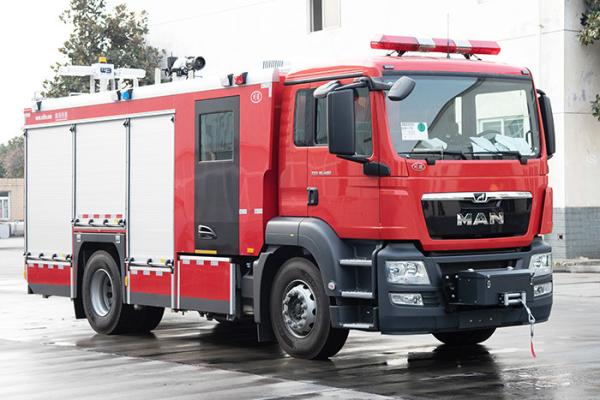

4000L Fire Tender with Germany MAN Chassis and Rescue Equipment
With modern management system, technology development system, production system and perfect service management system. CXFIRE ranks among the best firefighting companies in terms of technological level, production capacity, equipment scale, and operating efficiency. It has become a international high-efficiency and comprehensive modern fire protection enterprise.
1. The Whole Fire Tender
| No. | Main Items | Technical Parameters |
| 1.1 | Model | SXF5161GXFSG40 |
| 1.2 | Overall Dimension | 8185mm×2500mm×3690mm |
| 1.3 | Full Load Weight | 15800kgs |
| 1.4 | Number of the Crew | 8 (including driver) |
| 1.5 | Max. Speed | 90km/h |
| 1.6 | Capacity | 4000L Water. PP composite material liquid tank |
| 1.7 | Fire pump flow rate | 60L/s @ 10bar |
| 1.8 | Fire monitor | 50L/s flow rate, 60m shoot range |
| 1.9 | Painting | Red paint of U.S. PPG |
2. Chassis of the Fire Tender
3. Superstructure
| No. | Main Items | Technical Parameters |
| 3.1 | Cabin | |
| 3.1.1 | Structure | Front Driver's Cabin+Rear Crew Cabin |
| 3.1.2 | Seats | 2+6, with 3-point safety belt, the rear 4 seats with SCBA bracket for 6-9L air cylinders, with storage box under the rear 4 seats |
| 3.2 | Standardized Sub-frame | |
| 3.2.1 | Material | High-strength rectangular tube made of special steel |
| 3.2.2 | Performance | The liquid tank and the sub-frame are connected by elastic connecting seats |
| 3.3 | Compartment | |
| 3.3.1 | Material | High-strength aluminum alloy profiles (Never Rust) |
| 3.3.2 | Structure | Aluminum alloy welded structure. Roof railing with LED light. With aluminum alloy ladder in the rear |
| 3.4 | Roller Shutter Door | |
| 3.4.1 | Material | Aluminum alloy profiles with anodized surface |
| 3.4.2 | Structure | With rain-proof groove on the top, lever-type bar, lock handle, pull strap, two-point fixed seat, LED light and sensors. |
| 3.5 | Foot Pedals | |
| 3.5.1 | Material | High quality aluminum alloy |
| 3.5.2 | Structure | 50cm width, bear more than 300kg, anti-slip design, with double lock function. Mounted on the both sides of compartment. |
| 3.6 | Superstructure Electric Appliance | |
| 3.6.1 | Warning Light and Siren | Long-row warning light and siren are mounted above cabin. The controller is installed in the driver's cabin. |
| 3.6.2 | Strobe Light | Mounted on the both sides of the compartment |
| 3.6.3 | External Lighting | LED lights are mounted on the both sides of the compartment |
| 3.6.4 | Roof Lighting | LED lights are mounted on the inside of the roof |
| 3.6.5 | Side Indicator Light | Inline yellow warning light is mounted on the side of the compartment and pedals |
4. Optional Rescue Equipment
|
|
