| Brand Name : | CXFIRE |
| Model Number : | SXF5171GXFAP40/S |
| Certification : | CCC, CE, EN, NFPA |
| Price : | USD400,000-USD430,000 |
| Payment Terms : | T/T, L/C, D/A, D/P |
| Supply Ability : | 1000 units per year |
| Delivery Time : | 8-10 months |

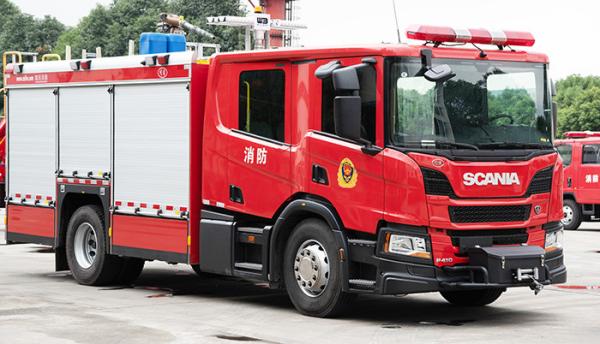

1. The Whole Fire Truck
| No. | Main Items | Technical Parameters |
| 1.1 | Model | SXF5171GXFAP40/S |
| 1.2 | Dimension | 9070mm×2520mm×3560mm |
| 1.3 | Full Load Weight | 17200kgs |
| 1.4 | Number of the Crew | 6 (include driver) |
| 1.5 | Max. Speed | 90km/h |
| 1.6 | Capacity | 3300L Water & 200L Type A Foam & 500L Type B Foam. PP composite material liquid tank |
| 1.7 | Fire pump flow rate | 60L/s @ 10bar |
| 1.8 | Fire monitor | 30L/s flow rate, 55m shoot range |
| 1.9 | CAFS system | Compressed air foam mixture flow rate: 90L/s. With Foam Pump and Air Compressor |
2. Chassis of the Fire Engine
| No. | Main Items | Technical Parameters |
| 3.1 | Cabin | |
| 3.1.1 | Structure | Double row cabin with 4 doors |
| 3.1.2 | Seats | 2+4, with 3-point safety belt, the rear 4 seats with SCBA bracket for 6-9L air cylinders, with storage box under the rear 4 seats |
| 3.2 | Standardized Sub-frame | |
| 3.2.1 | Material | High-strength rectangular tube made of special steel |
| 3.2.2 | Performance | The liquid tank and the sub-frame are connected by elastic connecting seats |
| 3.3 | Compartment | |
| 3.3.1 | Material | High-strength aluminum alloy profiles (Never Rust) |
| 3.3.2 | Structure | Aluminum alloy welded structure. Roof railing with LED light. With aluminum alloy ladder in the rear |
| 3.4 | Roller Shutter Door | |
| 3.4.1 | Material | Aluminum alloy profiles with anodized surface |
| 3.4.2 | Structure | With rain-proof groove on the top, lever-type bar, lock handle, pull strap, two-point fixed seat, LED light and sensors. |
| 3.5 | Foot Pedals | |
| 3.5.1 | Material | High quality aluminum alloy |
| 3.5.2 | Structure | 50cm width, bear more than 300kg, anti-slip design, with double lock function. Mounted on the both sides of compartment. |
| 3.6 | Superstructure Electric Appliance | |
| 3.6.1 | Warning Light and Siren | Long-row warning light and siren are mounted above cabin. The controller is installed in the driver's cabin. |
| 3.6.2 | Strobe Light | Mounted on the both sides of the compartment |
| 3.6.3 | External Lighting | LED lights are mounted on the both sides of the compartment |
| 3.6.4 | Roof Lighting | LED lights are mounted on the inside of the roof |
| 3.6.5 | Side Indicator Light | Inline yellow warning light is mounted on the side of the compartment and pedals |
| 3.7 | Fire Pump | |
| 3.7.1 | Brand | Optional |
| 3.7.2 | Model | Optional |
| 3.7.3 | Rated Flow Rate | 60L/s @ 10bar |
| 3.7.4 | Vacuum Pump | Electric vacuum pump |
| 3.7.5 | Priming Manner | Automatic |
| 3.7.6 | Suction Height | 7m |
| 3.7.7 | Priming Time | ≤50s |
| 3.7.8 | Location | Rear-mounted |
| 3.8 | Fire Monitor | |
| 3.8.1 | Brand | Optional |
| 3.8.2 | Model | Optional |
| 3.8.2 | Flow Rate | 30L/s @ 10bar |
| 3.8.3 | Shoot Range | Water ≥ 55 m, Foam ≥ 50 m |
| 3.8.4 | Location | On the top of the tank |
| 3.8.5 | Control Manner | Manual |
| 3.8.6 | Horizontal Rotation | 0°~360° |
| 3.8.7 | Pitch Rotation | -15°~60° |
| 3.9 | Liquid Tank | |
| 3.9.1 | Capacity | Water 3300L, Type A Foam 200L, Type B Foam 500L |
| 3.9.2 | Material | PP composite material and Never Rust |
| 3.9.3 | Structure | Two Tank Manhole; One Overflow Device/Pressure Relief Device; Two Liquid Level Indicators; One Water Tank and One Foam tank Drain Outlets with Valves |
|
|
