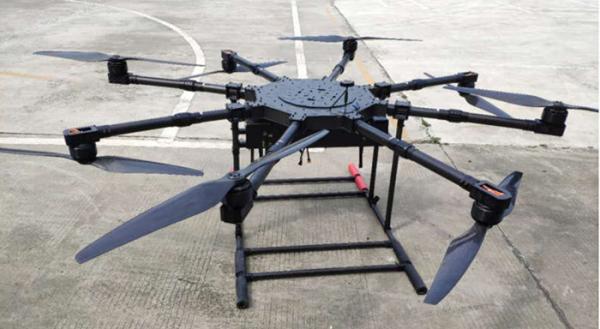

1. Overview of Heavy-Duty Multi-Rotor Detection Drone

• DXY013 unmanned aerial vehicle is composed of rotor frame, flight control, motor, ESC, battery pack, etc. The fuselage structure of the unmanned aerial vehicle is made of carbon fiber materials. The frame, support arm, landing gear, motor frame, etc. are all designed with light and strong structure, and the arm is composed of ESC, motor and propeller.
• DXY013 large-load multi-rotor UAV has a maximum load of 80KG and a safe load of 60KG. The weight of materials that can be thrown in the air can reach 45KG. The frame has a unique design, the arm has a special folding device, which can quickly fold the arm, which can reduce the space occupied by the aircraft by more than half, making transportation and carrying more convenient. The center frame circuit, arm, and ESC all adopt highly integrated design, making the installation and debugging process of the whole set of equipment simple and quick. The electronic governor and the connection lines are embedded in the center plate and the arm. The highly integrated design makes the circuit clear and clear, and the overall appearance of the body is simple and generous. The main material of the fuselage is carbon fiber, which has the characteristics of long life, light weight and strong rigidity. The drone has a high autonomous flight capability and is suitable for large-load operations; and can be equipped with different industry platforms such as visible light pods, infrared thermal imaging cameras, etc., and can be configured with real-time image transmission and ground station to process and return information in real time recording.

2. Technical Parameters

CXFIRE is located in Chengdu of China with an area of 200,000 square meters and 600 staff. The annual output is 1000 units fire fighting vehicles. Through 60 years' development, CXFIRE has become the biggest manufacturer and one-stop solution supplier of fire fighting products in China.

CXFIRE has complete fire fighting products as follows:


1. Fire Trucks: With 144 basic fire trucks' models and more than 400 types of configuration. Different chassis can be selected according to customer's needs, such as Scania, Mercedes-Benz, Man, Vovle, Saic-Iveco Hongyan, Sinotruk, Isuzu, Dongfeng, Foton, Faw etc.


2. Fire Fighting Equipment: Fire extinguishing robot, Fire extinguishing drone, Fire pump, Fire monitor, Fire truck standard components, Rescue tools, Personnel protection equipment etc.


3. Fire Extinguishing System: Gas Extinguishing System, Water Extinguishing System, Foam Extinguishing System, Powder Extinguishing System etc.

CXFIRE exports hundreds of fire trucks every year, and its main markets are Europe, Asia, the Middle East, America, Africa, etc. Its excellent product quality and perfect after-sales service have won a good reputation.

CXFIRE is the first fire protection company in China to pass international certification, and its manufacturing standards could meet the requirement of ISO, CCC, CE, EN, NFPA. As a national high-tech enterprise, now CXFIRE totally owns more than 300 patents including patent of invention, appearance design patents and utility model patents.

With modern management system, technology development system, production system and perfect service management system. CXFIRE ranks among the best firefighting companies in terms of technological level, production capacity, equipment scale, and operating efficiency. It has become a international high-efficiency and comprehensive modern fire protection enterprise.
