    Sinotruk SITRAK 32m Rescue Aerial Platform Fire Fighting Truck

    Ask Lasest Price
    Brand Name : CXFIRE
    Model Number : SXF5201JXFDG32
    Certification : CCC, CE, EN, NFPA
    Price : USD350,000-USD400,000
    Payment Terms : T/T, L/C, D/A, D/P
    Supply Ability : 1000 units per year
    Delivery Time : 8 months
    • Product Details
    • Company Profile

    Sinotruk SITRAK 32m Rescue Aerial Platform Fire Fighting Truck

    • CXFIRE, founded in 1963, is the biggest fire trucks manufacturer in China, with an annual output of 1,000 units fire trucks each year.
    • The rescue aerial platform fire truck is a multi-purpose vehicle used in municipal fire department and industrial areas. The max. working height is 32 meters and the rescue basket's load capacity is 300kg.

    1. Sinotruk SITRAK 32m Rescue Aerial Platform Fire Fighting Truck

    No.Main ItemsTechnical Parameters
    1.1ModelSXF5201JXFDG32
    1.2Overall Dimension

    11500×2500×3900mm

    1.3Full Load Weight20000kgs
    1.4Number of the Crew2 (include driver)
    1.5Max. Speed90km/h
    1.6CapacityOptional
    1.7Fire pump flow rateOptional
    1.8Fire monitor80L/s flow rate, 70m shoot range
    1.9Max. working height32m

    2. Chassis

    No.Main ItemsTechnical Parameters
    2.1ManufacturerSINOTRUK
    2.2ModelOptional
    2.3Drive type4*2
    2.4WheelbaseOptional
    2.5Engine modelOptional (using German MAN engine technology)
    2.6Engine typeInline 6-cylinder, turbocharged, inter-cooled diesel engine
    2.7Rated power203Kw
    2.8Gearbox formManual gearbox, 9 forward gears + 1 reverse gear
    2.9PTOFull power sandwich type, with additional cooling device
    2.10Fuel tank capacity200L aluminum alloy round fuel tank

    3. Superstructure of the Aerial Fire Truck

    3.1 Cabin

    • Structure: Single row cabin with 2 doors.
    • Seats: 1+1, with 3-point safety belt.

    3.2 Standardized Sub-frame

    • Material: High-strength rectangular tube made of special steel
    • Performance: The liquid tank and the sub-frame are connected by elastic connecting seats.

    3.3 Compartment

    • Material: High-strength aluminum alloy profiles (Never Rust)
    • Structure: Aluminum alloy welded structure. Roof railing with LED light. With aluminum alloy ladder in the rear.

    3.4 Roller Shutter Door

    • Material: Aluminum alloy profiles with anodized surface.
    • Structure: With rain-proof groove on the top, lever-type bar, lock handle, pull strap, two-point fixed seat, LED light and sensors.

    3.5 Foot Pedals

    • Material: High quality aluminum alloy.
    • Structure: 50cm width, bear more than 300kg, anti-slip design, with double lock function. Mounted on the both sides of compartment.

    3.6 Superstructure Electric Appliance

    • Warning Light and Siren: 2 warning lights and siren are mounted above cabin. The controller is installed in the driver's cabin.
    • Strobe Light: Mounted on the both sides of the compartment.
    • External Lighting: LED lights are mounted on the both sides of the compartment.
    • Roof Lighting: LED lights are mounted on the inside of the roof.
    • Side Indicator Light: Inline yellow warning light is mounted on the side of the compartment and pedals.
    4. Reference Pictures

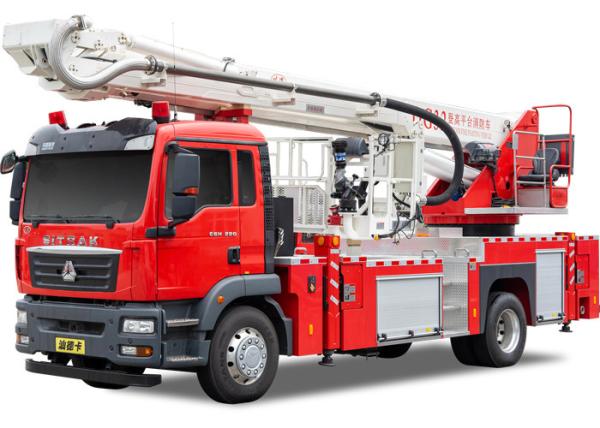

    Sinotruk SITRAK 32m Rescue Aerial Platform Fire Fighting Truck Sinotruk SITRAK 32m Rescue Aerial Platform Fire Fighting Truck Sinotruk SITRAK 32m Rescue Aerial Platform Fire Fighting Truck Sinotruk SITRAK 32m Rescue Aerial Platform Fire Fighting Truck Sinotruk SITRAK 32m Rescue Aerial Platform Fire Fighting Truck Sinotruk SITRAK 32m Rescue Aerial Platform Fire Fighting Truck
