1. Enterprise Introduction
The largest fire trucks manufacturer in China. Established in 1963. The main manufacturing base is located in Chengdu of Sichuan Province with an area of 200,000 square meters and 600 staff members. More than 1000 units fire trucks are produced and sold every year.

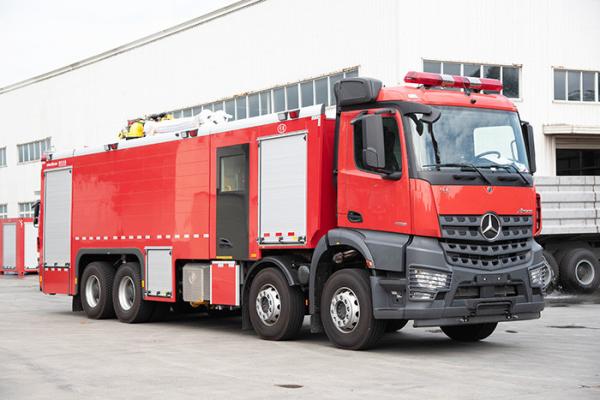

2. 18000L Mercedes Benz Heavy Duty Fire Truck with 580 Horse Power
| No. | Main Items | Technical Parameters |
| 2.1 | Model | SXF5381GXFPM180 |
| 2.2 | Overall Dimensions | 11470mm×2500mm×3820mm |
| 2.3 | Total Weight | 37600kgs with full load |
| 2.4 | Number of the Crew | 2+4(include driver) |
| 2.5 | Max. Speed | 90km/h |
| 2.6 | Capacity | 10000L Water & 8000L Foam. PP composite material liquid tank and Never in Rust |
| 2.7 | Fire pump flow rate | 10000L/min. @10.3bar |
| 2.8 | Fire monitor | 9000L/min. flow rate, 90m spray range |
| 2.9 | Paint | Red Color, U.S. PPG brand |
3. MB Chassis
4. Superstructure of SXF5381GXFPM180
4.1 Compartment
4.1.1 Material: All made of high-strength aluminum alloy profiles.
4.1.2 Structure: The frame of the carriage is all-aluminum alloy frame welded structure, and the outer skin is made of bonded aluminum alloy plates.
4.1.3 Roof guard: Made of aluminum alloy as a whole, with strobe warning lights and exterior lights installed outside, and LED roof lights inside.
4.1.4 Ladder frame: A set of multifunctional ladder frame is set on the top.
4.1.5 Rear ladder: An aluminum alloy safety ladder leading to the roof is set on the right side of the rear.
4.2 Electrical System
4.2.1 Warning lights: Long row warning light are set on the top; The control devices are installed in the cab.
4.2.2 Equipment box lights: There are LED white lighting strips on both sides of the equipment box. The light switch and the rolling door are linked.
4.2.3 Strobe lights: Strobe lights for warning are arranged on the upper part.
4.2.4 Exterior lighting: LED lights for lighting are provided on the upper part of the compartment.
4.2.5 Roof lighting: LED lights are provided inside the top of the carriage.
4.2.6 Side Indicater Light: Built-in yellow indicater lights are installed on pedals.
| No. | Main Items | Technical Parameters |
| 5.1 | Fire Pump | |
| 5.1.1 | Brand | Optional |
| 5.1.2 | Model | Optional |
| 5.1.3 | Flow Rate | 10000L/min. @ 1.03Mpa |
| 5.1.4 | Vacuum Pump | Electric vacuum pump |
| 5.1.5 | Priming Manner | Automatic |
| 5.1.6 | Suction Height | 7m |
| 5.1.7 | Priming Time | ≤100s |
| 5.1.8 | Location | Rear-mounted |
| 5.2 | Water and Foam Monitor | |
| 5.2.1 | Brand | Optional |
| 5.2.2 | Model | Optional |
| 5.2.2 | Flow Rate | 9000L/min. @ 1.0Mpa |
| 5.2.3 | Shoot Range | Water ≥90 meters, Foam ≥ 85 meters |
| 5.2.4 | Location | On the top of the tank |
| 5.2.5 | Control Type | Remote Control |
| 5.2.6 | Horizontal Rotation | 0°~355° |
| 5.2.7 | Pitch Rotation | -15°~90° |
| 5.3 | Liquid Tank for Water and Foam | |
| 5.3.1 | Capacity | Water 10000L and Foam 8000L |
| 5.3.2 | Material | PP composite material (Never Rust) |
| 5.3.3 | Structure | Two Tank Manhole; One Overflow Device/Pressure Relief Device; Two Liquid Level Indicators; One Foam tank Drain Outlets with Valves; One Water tank Drain Outlets with Valves. |
|
|
