| Brand Name : | CXFIRE |
| Model Number : | CX-LX700UTV |
| Certification : | CCC, CE, EN, NFPA |
| Price : | USD25,000-USD30,000 |
| Payment Terms : | T/T, L/C, D/A, D/P |
| Supply Ability : | 2000 units per year |
| Delivery Time : | 4-5 months |
1. Technical Specifications
| 4-Wheels All Terrain Fire Fighting Vehicle | |
| Model | CX-LX700UTV |
| Overall Dimension(mm) | Approx. Length:3010, Width:1575, Height:2200 |
| Total weight with full load (kg) | Approx. 1130 |
| Engine | Gasoline, 686cc, water cooled, 4-stroke, 1-cylinder |
| Max. Power | 32.4kw / 6000rpm |
| Driving manner | Front engine, four-wheel drive 4x4 |
| Max. speed (km/h) | 60 |
| Ground clearance (mm) | 280 |
| Emission standard | Euro IV |
| Motor for water pump | HONDA (Japanese Brand) |
| Structure of motor | Four-stroke, 1 cylinder |
| Rated Power (KW) | 4 |
| Starting method | Electric |
| Rotation speed (r/min) | 3600 |
| Model of Water Pump | AR (Italy Brand) |
| Flow rate of Water Pump (l/min) | 40 |
| Work Pressure (bar) | 40 |
| Self-suction function (m) | 5 |
| Rotation speed (r/min) | 650 |
| Model of Hose Reel | JPL-13/19-CX-Y |
| Length of hose (m) | 30 |
| Test Pressure of hose (bar) | 100 |
| Internal and external diameter (mm) | 13/19 |
| Model of Water Nozzle | GYQ30 |
| Shot range of straight stream (m) | 15 |
| Shot range of mist spray (m) | 7 |
| Flow rate of water nozzle (l/min) | 30 |
| Control rate of foam proportioner | 0.4~6% |
| Flow rate (l/min) | adjustable |
| Water tank (L) | 180 |
| Independent Foam Tank (L) | 20 |

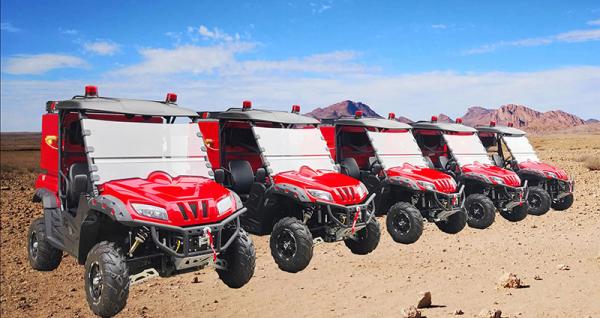

2. Reference Pictures of Enterprise
|
|
