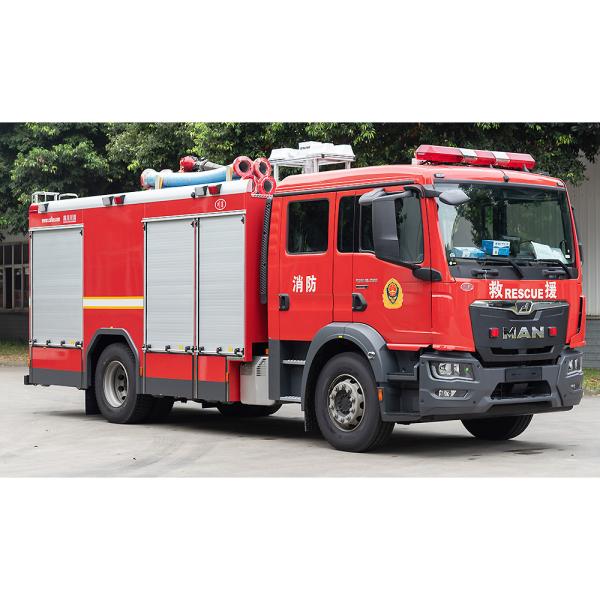

MAN Water Tank Fire Truck China Manufacturer

1. Vehicle Parameters
1.1 Dimensions: 8290mm×2530mm×3480mm
1.2 Total mass of full load: 16800kg
1.3 Number of crew: 7
1.4 Maximum speed: 90km/h
1.5 Emission Standard: Euro 6
1.6 Tank capacity: 6000L of water
1.7 Fire pump flow: 60L/s
1.8 Fire monitor flow: 50L/s

2. Main Components of the Small Fire Truck

3. Control Panel for Fire Fighting System

3.1 Various types of control modules can be installed according to the vehicle configuration, and all fire-fighting components are fully electronically controlled, using PLC intelligent control; all buttons, switches and indicators on the control panel are marked with English signs; prominent locations are provided with piping layout and Brief operating instructions. The panel adopts a waterproof and dust-proof design mode, and the protection level can reach IP56.

3.2 Language: English

4. Reference Pictures

CXFIRE is located in Chengdu of China with an area of 200,000 square meters and 600 staff. The annual output is 1000 units fire fighting vehicles. Through 60 years' development, CXFIRE has become the biggest manufacturer and one-stop solution supplier of fire fighting products in China.

CXFIRE has complete fire fighting products as follows:


1. Fire Trucks: With 144 basic fire trucks' models and more than 400 types of configuration. Different chassis can be selected according to customer's needs, such as Scania, Mercedes-Benz, Man, Vovle, Saic-Iveco Hongyan, Sinotruk, Isuzu, Dongfeng, Foton, Faw etc.


2. Fire Fighting Equipment: Fire extinguishing robot, Fire extinguishing drone, Fire pump, Fire monitor, Fire truck standard components, Rescue tools, Personnel protection equipment etc.


3. Fire Extinguishing System: Gas Extinguishing System, Water Extinguishing System, Foam Extinguishing System, Powder Extinguishing System etc.

CXFIRE exports hundreds of fire trucks every year, and its main markets are Europe, Asia, the Middle East, America, Africa, etc. Its excellent product quality and perfect after-sales service have won a good reputation.

CXFIRE is the first fire protection company in China to pass international certification, and its manufacturing standards could meet the requirement of ISO, CCC, CE, EN, NFPA. As a national high-tech enterprise, now CXFIRE totally owns more than 300 patents including patent of invention, appearance design patents and utility model patents.

With modern management system, technology development system, production system and perfect service management system. CXFIRE ranks among the best firefighting companies in terms of technological level, production capacity, equipment scale, and operating efficiency. It has become a international high-efficiency and comprehensive modern fire protection enterprise.
