SITRAK 18m Aerial Ladder Fire Truck (New Boom)

1. Enterprise Profile
CXFIRE, founded in the year of 1963, is the biggest fire fighting vehicles manufacturer in China. The annual output is 1000 units fire fighting trucks. The main factory is located in Chengdu of China with an area of 200,000 square meters and 600 employees.

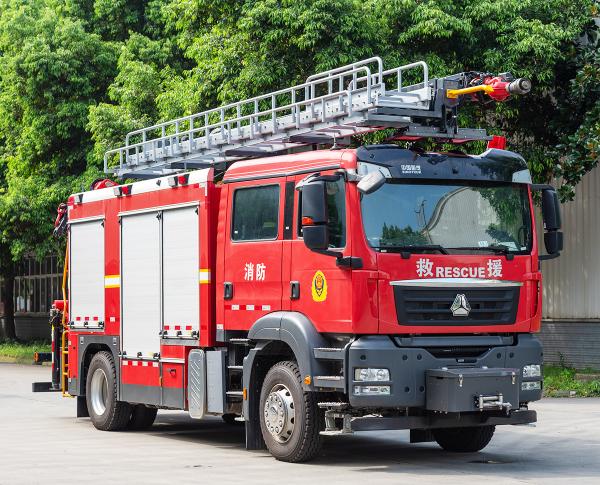

2. SITRAK 18m Aerial Ladder Fire Truck (New Boom)
The heavy-duty water tower fire truck SXF5192JXFYT18/A is a usual vehicle used in municipal fire department and industrial areas. The max. working height is 18m and the working range is 12 meters. It can take 2500L water tank & 660L foam tank. The fire pump flow rate is 60L/s and the fire monitor has 70m shoot distance.
3. The Whole Fire Truck's Parameters

4. Chassis
4.1 Manufacturer: Sinotruk Group Jinan Commercial Vehicle Co., Ltd.
4.2 Model: ZZ5206N471GF5
4.3 Drive type: 4*2
4.4 Wheelbase: 4700mm
4.5 Engine model: MC07H.35-60
4.6 Engine type: In-line 6-cylinder diesel engine, electronically controlled high-pressure common rail, turbocharged intercooler
4.7 Rated power: 257/2200(kW/rpm)
4.8 Gearbox form: Manual gearbox
4.9 PTO: Full power sandwich type, with additional cooling device
4.10 Fuel tank capacity: 200L fuel tank

5.1 Fire Pump

• Rated Flow Rate: 40L/s @ 10bar
• Vacuum Pump: Electric vacuum pump
• Priming Manner: Automatic
• Suction Height: 7m
• Priming Time: ≤60s
• Location: Center-mounted

5.2 Roof Fire Monitor

• Flow Rate: 32L/s.
• Shoot Range: Water ≥ 40 m
• Location: Top of the boom
• Control Manner: Electric remote control
• Horizontal Rotation Angle: -90°~90°
• Pitch Rotation Angle: -100°～35°

5.3 Liquid Tank

• Capacity: Water 2500 Liters + Foam 660 Liters
• Material: PP composite material and Never Rust
• Structure: Two Tank Manhole; Two Overflow Device/Pressure Relief Device; Two Liquid Level Indicators; One Foam tank Drain Outlets with Valves; One Water tank Drain Outlets with Valves.
