Beiben 18m Aerial Ladder Fire Truck

1. Enterprise Profile
CXFIRE, founded in the year of 1963, is the biggest fire fighting vehicles manufacturer in China. The annual output is 1000 units fire fighting trucks. The main factory is located in Chengdu of China with an area of 200,000 square meters and 600 employees.

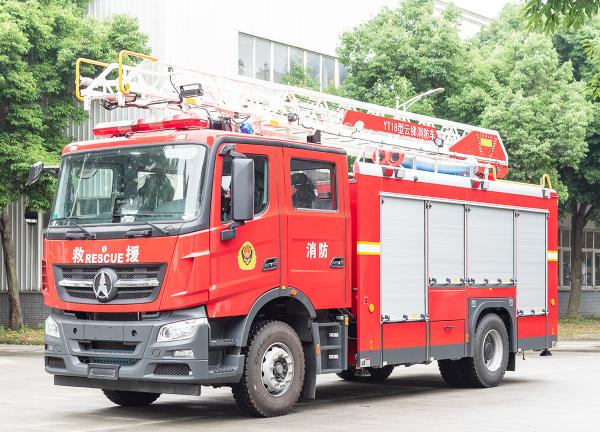

2. Beiben Aerial Ladder Rescue Fire Truck

The heavy-duty water tower fire truck SXF5202JXFYT18 is a usual vehicle used in municipal fire department and industrial areas. The max. working height is 18m and the working range is 13 meters. It can take 3000L water tank & 550L foam tank. The fire pump flow rate is 50L/s and the fire monitor has 70m shoot distance.

3. The Whole Fire Truck's Parameters

4. Chassis
4.1 Manufacturer: Beiben Trucks Group Co., Ltd.
4.2 Model: ND5210TTZZ02
4.3 Drive type: 4*2
4.4 Wheelbase: 4800mm
4.5 Engine model: WP8.350E62
4.6 Engine type: In-line 6-cylinder diesel engine, electronically controlled high-pressure common rail, turbocharged and intercooled
4.7 Rated power: 257/2200(kW/rpm)
4.8 Gearbox form: Manual gearbox
4.9 PTO: Full power sandwich type, with additional cooling device
4.10 Fuel tank capacity: 200L fuel tank

5.1 Fire Pump

• Rated Flow Rate: 50L/s @ 10bar
• Vacuum Pump:Integrated design with the water pump, directly driven through the pump shaft, no additional power required, no noise
• Priming Manner: Automatic
• Suction Height: 7m
• Priming Time: ≤60s
• Location: Rear-mounted

5.2 Roof Fire Monitor

• Flow Rate: 48L/s.
• Shoot Range: Water ≥ 70 m, Foam ≥ 60 m
• Location: Top of the carriage
• Control Manner: Electric remote control
• Horizontal Rotation Angle:90° to the left, 90° to the right
• Pitch Rotation Angle: -17°～75°

5.3 Liquid Tank

• Capacity: Water 3000 Liters + Foam 550 Liters
• Material: PP-C composite material and Never Rust
• Structure: Two Tank Manhole; Two Overflow Device/Pressure Relief Device; Two Liquid Level Indicators; One Foam tank Drain Outlets with Valves; One Water tank Drain Outlets with Valves.

6. Company Pictures for Your Reference

CXFIRE is located in Chengdu of China with an area of 200,000 square meters and 600 staff. The annual output is 1000 units fire fighting vehicles. Through 60 years' development, CXFIRE has become the biggest manufacturer and one-stop solution supplier of fire fighting products in China.

CXFIRE has complete fire fighting products as follows:


1. Fire Trucks: With 144 basic fire trucks' models and more than 400 types of configuration. Different chassis can be selected according to customer's needs, such as Scania, Mercedes-Benz, Man, Vovle, Saic-Iveco Hongyan, Sinotruk, Isuzu, Dongfeng, Foton, Faw etc.


2. Fire Fighting Equipment: Fire extinguishing robot, Fire extinguishing drone, Fire pump, Fire monitor, Fire truck standard components, Rescue tools, Personnel protection equipment etc.


3. Fire Extinguishing System: Gas Extinguishing System, Water Extinguishing System, Foam Extinguishing System, Powder Extinguishing System etc.

CXFIRE exports hundreds of fire trucks every year, and its main markets are Europe, Asia, the Middle East, America, Africa, etc. Its excellent product quality and perfect after-sales service have won a good reputation.

CXFIRE is the first fire protection company in China to pass international certification, and its manufacturing standards could meet the requirement of ISO, CCC, CE, EN, NFPA. As a national high-tech enterprise, now CXFIRE totally owns more than 300 patents including patent of invention, appearance design patents and utility model patents.

With modern management system, technology development system, production system and perfect service management system. CXFIRE ranks among the best firefighting companies in terms of technological level, production capacity, equipment scale, and operating efficiency. It has become a international high-efficiency and comprehensive modern fire protection enterprise.
