| Brand Name : | CXFIRE |
| Model Number : | CX-FAW2T |
| Certification : | CCC |
| Price : | USD100,000-USD150,000 |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 800 units per year |
| Delivery Time : | 6-8 months |

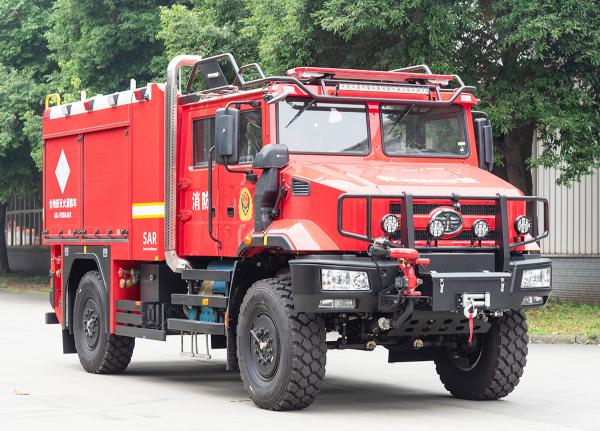

1.FAW Jiefang 2T Water Tank Fire Truck
2. Chassis
| No. | Main Items | Technical Parameters |
| 2.1 | Manufacturer | FAW Car Co., Ltd. |
| 2.2 | Model | CA2130J2K2L2T5E6Z |
| 2.3 | Drive type | 4*4 |
| 2.4 | Wheelbase | 4300mm |
| 2.5 | Engine model | CA6DL6-35E68 |
| 2.6 | Engine type | In-line 6-cylinder, water-cooled, supercharged and intercooled |
| 2.7 | Rated power | 261(kW) |
| 2.8 | Gearbox form | Automatic gearbox |
| 2.9 | Fuel tank capacity | 180L |
3. Superstructure
3.1 Cabin
3.1.1 Structure: Double row four-door cab
3.1.2 Seats:Double row seats, seats 1+1+4
3.2 Standardized Sub-frame
3.2.1 Material: High-strength rectangular tube made of special
steel
3.2.2 Performance: The liquid tank and the sub-frame are connected
by elastic connecting seats
3.3 Compartment
3.3.1 Material: High-strength aluminum alloy profiles (Never Rust)
3.3.2 Structure: Aluminum alloy welded structure. Roof railing with
LED light. With aluminum alloy ladder in the rear
3.4 Roller Shutter Door
3.4.1 Material: Aluminum alloy profiles with anodized surface
3.4.2 Structure: With rain-proof groove on the top, lever-type bar,
lock handle, pull strap, two-point fixed seat, LED light and
sensors.
3.5 Superstructure Electric Appliance
3.5.1 Warning Light and Siren: Warning light and siren are mounted
above cabin. The controller is installed in the driver's cabin.
3.5.2 Strobe Light: Mounted on the both sides of the compartment
3.5.3 External Lighting: LED lights are mounted on the both sides
of the compartment
3.5.4 Roof Lighting: LED lights are mounted on the inside of the
roof
3.5.5 Side Indicator Light: Inline yellow warning light is mounted
on the side of the compartment
4. Main Equipment of The Fire Fighting Truck
| No. | Main Items | Technical Parameters |
| 4.1 | Fire Pump | |
| 4.1.1 | Brand | Ziegler |
| 4.1.2 | Model | CB40.10/10.40-Z |
| 4.1.3 | Rated Flow Rate | 30L/s @ 10bar |
| 4.1.4 | Suction Height | 7m |
| 4.1.5 | Priming Time | ≤60s |
| 4.1.6 | Location | Rear-mounted |
| 4.2 | Fire Monitor | |
| 4.2.1 | Brand | Ziegler |
| 4.2.2 | Model | PSKD8/20W-Z |
| 4.2.2 | Flow Rate | 20L/s @ 10bar |
| 4.2.3 | Shoot Range | Water ≥ 45m |
| 4.2.4 | Location | Front part of vehicle |
| 4.2.5 | Control Manner | Electric remote control |
| 4.2.6 | Horizontal Rotation | 0°~350° |
| 4.2.7 | Pitch Rotation | -15°~45° |
| 4.3 | Liquid Tank | |
| 4.3.1 | Capacity | 2000L Water |
| 4.3.2 | Material | PP composite material and Never Rust |
| 4.3.3 | Structure | 1 manhole; 1 overflow/pressure relief device; 1 liquid level sensor; 1 water tank discharge port. |
| 4.4 | Fire Fighting Control System | |
| 4.4.1 | Structure | The fire control system of this vehicle adopts advanced CAN 2.0 bus control technology and is equipped with a pump room operation control panel, which can discharge residual water with one click. |
| 4.4.2 | One-click discharge of residual water | Install air-controlled drainage pipelines at the location where the water pump system needs to discharge residual water. One-click control. |
|
|
